| HP ProLiant DL580 Generation 8 (Gen8) | |
| Overview | |
| The HP ProLiant DL580 Gen8 Server is an enterprise-grade four socket (4S) x86 server offering breakthrough performance, rocksolid reliability, and compelling consolidation and manageability efficiencies. It is ideal for mission-critical enterprise, business intelligence, and database applications. Featuring Intel® Xeon® E7-4800/8800 v2 processors, the DL580 Gen8 offers blazing fast results with enhanced processor performance, more memory slots (96 DIMMs), greater IO bandwidth (9 PCIe Gen3.0 slots), and increased storage performance (12Gbps SAS). HP ProLiant DL580 Gen8 has security and data protection features for system resiliency that your business can depend on. With intelligent manageability through HP OneView, iLO 4, and user-inspired features, you get faster, lower cost infrastructure management. |

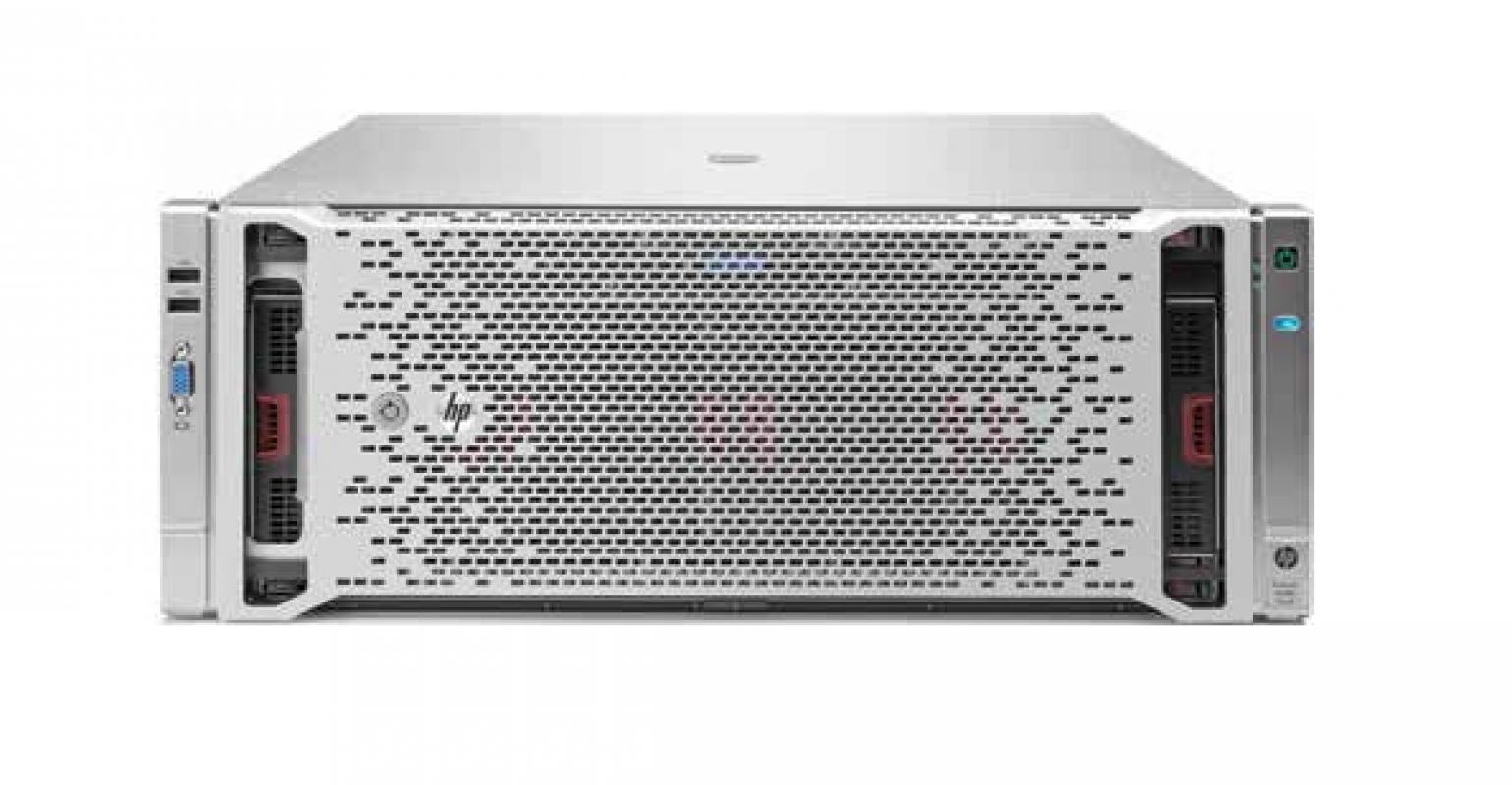

| Front View 1. One front video port 2. Server lifting handles 3. Universal Tool-less “Snap in” sliding rail solution 4. 4U (7″ height) form factor 5. Support for up to four Intel® Xeon® 4800/8800 v2 Processors 6. Up to 9 slots supported; all full-length/full-height 7. Quick removal access panel 8. Quick release lever for Processor and Memory drawer 9. Slide out Systems Insight Display 10. Power button 11. Health and Network LEDs 12. Unit ID LED 13. Front accessible Processor and memory drawer 14. 4 Hot Plug Fans (eight rotors with N+1 redundancy) 15. Asset tag 16. Support for up to 10 Small Form-Factor (SFF) drives 17. Two front accessible USB 2.0 ports | Rear View 1. NIC ports 2. Serial port 3. Video port 4. Four (4) USB ports 5. Hot Plug Redundant Power Supplies (2 or 4 depending on the model) 6. 9 PCIe 3.0 IO Expansion Slots 7. iLO connector |
| Standard Features | |
| Processor | Fifteen-Core Processors Intel® Xeon® E7-4890v2 (2.8GHz/15-core/37.5MB/155W) Processor Intel® Xeon® E7-4880v2 (2.5GHz/15-core/37.5MB/130W) Processor Intel® Xeon® E7-4870v2 (2.3GHz/15-core/30MB/130W) Processor Intel® Xeon® E7-8880Lv2 (2.2GHz/15-core/37.5MB/105W) Processor NOTE: This is a power optimized processor Twelve-Core Processors Intel® Xeon® E7-4860v2 (2.6GHz/12-core/30MB/130W) Processor Intel® Xeon® E7-4850v2 (2.3GHz/12-core/24MB/105W) Processor Intel® Xeon® E7-8857v2 (3.0GHz/12-core/30MB/130W) Processor NOTE: This is frequency optimized processor suited high performance computing applications Ten-Core Processors Intel® Xeon® E7-4830v2 (2.2GHz/10-core/20MB/105W) Processor Intel® Xeon® E7-8891v2 (3.2GHz/10-core/37.5MB/155W) Processor NOTE: This is a lower core, higher frequency processor for software licensing cost optimization Eight-Core Processors Intel® Xeon® E7-4820v2 (2.0GHz/8-core/16MB/105W) Processor Six-Core Processors Intel® Xeon® E7-4809v2 (1.9GHz/6-core/12MB/105W) Processor Intel® Xeon® E7-8893v2 (3.4GHz/6-core/37.5MB/155W) Processor NOTE: This is a lower core, higher frequency processor for software licensing cost optimization |
| Chipset | Intel® C602J Chipset Intel® Xeon® E7-4800/8800 v2 Processor Family |
| Upgradeability | Up to: Four (4) processors Ninety-six (96) DDR3 DIMM slots Nine (9) PCIe Gen3 expansion slots NOTE: PCIe slot availability is dependent on the number of processors installed. Please refer to the “Expansion slots” section for more details. Ten (10) SFF internal HDD/SSD drive bays NOTE: Five drive bays come standard. An optional backplane kit with five drive bays can be ordered ften drives. Four (4) redundant hot-plug power supplies |
| Memory | Type HP SmartMemory DDR3 Registered (RDIMM) and Load Reduced (LRDIMM) DIMM Slots Available 96 DIMM slots Maximum 6TB (96x 64GB) NOTE: HP memory from previous generation servers are not qualified or warranted with this HP ProLiant Server. HP SmartMemory is required to realize the memory performance improvements and enhanced functionality listed in this document for Gen8. NOTE: LRDIMM and RDIMM are distinct memory technologies and cannot be mixed within a server. NOTE: Depending on the memory configuration and processor model, the memory speed may run at 1600MHz, 1333MHz, or 1066MHz. |
| Network Controller | FlexibleLOM HP ProLiant Gen8 servers offer a new flexible network technology – FlexibleLOMs, which offers customers a choice of 1Gb, 10Gb, or 10Gb base-T Ethernet or converged networking in their embedded adapter. HP Ethernet 1Gb 4-port 331FLR FIO Adapter HP Ethernet 1Gb 4-port 366FLR FIO Adapter HP Ethernet 10Gb 2-port 533FLR-T FIO Adapter HP FlexFabric 10Gb 2-port 534FLR-SFP+ FIO Adapter NOTE: This adapter does not support FCOE Boot from SAN functionality on VMWare and FCOE with RHEL 5.9. HP Ethernet 10Gb 2-port 560FLR-SFP+ FIO Adapter HP Ethernet 10Gb 2-port 561FLR-T FIO Adptr NOTE: For additional details see the Networking Section of this document. NOTE: Wake-on-Lan feature is not supported on the DL580 Gen8 with FlexLOMs |
| Maximum Internal Storage | CAPACITY CONFIGURATION Hot Plug SFF SAS 12 TB 10 x 1.2 TB Hot Plug SFF SAS SSD 16 TB 10 x 1.6 TB Hot Plug SFF SATA SSD 8 TB 10 x 800 GB |
